Question set image size in posting not working (reason for my former problem)

More
6 days 19 hours ago - 6 days 18 hours ago #234919 by joomod
set image size in posting not working (reason for my former problem) was created by joomod
Kunena has changed the method how to define the size of inline images.

in Kunena5 (don't know v6) the code looked like [img size=150]*
*may be if an admin will try to edit this post CK Editor will not work because of this tag
but having this in a posting in Kunena 7 CK Editor won't open to work with.

now in Kunena 7 I cannot find how to set the image size in CK Editor,
even if it is set (by using SK Editor) CK Editor ignors the params.
Code:
original code set by SK  [img=200x67] only comes as [img]

so how can wet set the size of inline images in CK Editor ?

and also:
SK Editor does not fully work
setting the size on an inline image gives the expected preview,
BUT  in the normal posting view the image is still original size


Last edit: 6 days 18 hours ago by joomod.

Please Log in or Create an account to join the conversation.

More
6 days 13 hours ago - 6 days 11 hours ago #234921 by joomod
Replied by joomod on topic set image size in posting not working (reason for my former problem)
here is the orig. image code as from aurelia layout/bbcode/image  (also dublicated in other templates)
Code:
namespace Kunena\Forum\Site; \defined('_JEXEC') or die(); use Kunena\Forum\Libraries\Config\KunenaConfig; $title    = $this->title; $url      = $this->url; $size     = $this->size; $alt      = $this->alt; $canLink = isset($this->canLink) ? $this->canLink : true; echo $this->subLayout('Widget/Lightbox'); $config = KunenaConfig::getInstance(); $attributesLink = $config->lightbox ? ' data-fancybox="gallery"' : ''; $width          = $size ? (int) $size . "px;" : 'auto '; $attributesImg  = ' style="max-height: ' . (int) $config->imageHeight . 'px;' . ' max-width:' . $width . '"'; $attributesImg  .= $alt ? ' alt="' . htmlspecialchars($alt) . '"' : ''; ?> <div class="kmsgimage">     <?php if ($canLink) :         ?>     <a href="<?php echo $this->escape($url); ?>" data-bs-toggle="tooltip" title="<?php echo $alt; ?>" <?php echo $attributesLink; ?>>     <?php endif; ?>         <img loading=lazy src="<?php echo $this->escape($url); ?>" <?php echo $attributesImg; ?> alt="<?php echo $title; ?>"/>         <?php if ($canLink) :             ?>     </a>         <?php endif; ?> </div>

you see, the size setting of an img is declared (included as width), but not CKEditor or SCEditor are giving a size attribute to images.


so how can we set image size ?
Last edit: 6 days 11 hours ago by joomod.

Please Log in or Create an account to join the conversation.

More
6 days 12 hours ago - 6 days 11 hours ago #234922 by joomod
Replied by joomod on topic set image size in posting not working (reason for my former problem)
summary of image settings:

[img]               =>  works, but no size settings
[img=200x67]       works in SC preview, but not in forum view     CK removes the size setting
[img size=200]     works in SC forum view, but not in preview     CK does not open in working mode
Last edit: 6 days 11 hours ago by joomod.

Please Log in or Create an account to join the conversation.

More
5 days 17 hours ago - 5 days 17 hours ago #234925 by joomod
Replied by joomod on topic set image size in posting not working (reason for my former problem)
I searched on many ckeditor 4 articles and finally ended with this question:

why (where?) have you disabled the images size and property settings in the basic image plugin?

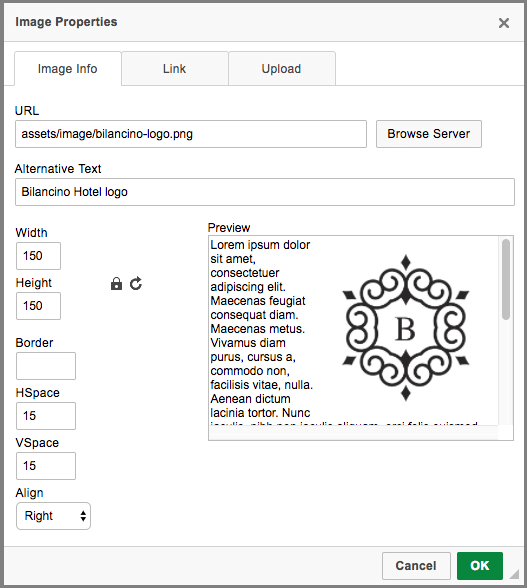

this is what the image insert dialog looks like normally:

btw. also the upload option could be helpful, (using  config to disable)


Last edit: 5 days 17 hours ago by joomod.

Please Log in or Create an account to join the conversation.

More
5 days 17 hours ago #234926 by rich
Replied by rich on topic set image size in posting not working (reason for my former problem)
I can confirm the problem and have added it to the bug list. It appears to be two separate bugs, as CKEditor removes the size information upon saving, while SCEditor saves the size information but Kunena ignores it.
Important! Always create a backup before you make any changes to your website!
The following user(s) said Thank You: joomod

Please Log in or Create an account to join the conversation.

More
5 days 16 hours ago #234927 by joomod
Replied by joomod on topic set image size in posting not working (reason for my former problem)
thank you,
can you explain in which file Kunena disables the image property settings ?
(in not in the ckeditor_config, may be in the image.js but Kunena has minified them, so hard to read).
I would like to experiment a bit more.

also do you know/see why CK Editor skipps if there is an attribute in the image tag (not depending on the value)?
